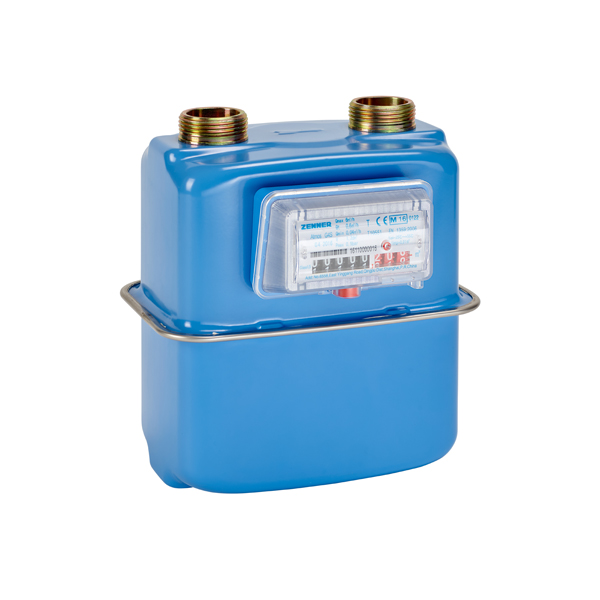

Atmos diaphragm gas meter G1.6S, G2.5S, G4S, G6S

General Information

Solid build quality, high accuracy, safety, and a series of advanced technical details make the ZENNER diaphragmgas meter a high-grade measuring instrument.

The Diaphragm gas meter is available in sizes G1.6, G2.5, G4 and G6. The meter is characterized by precise measurements, a constant measuring stability, a long life and high reliability. Thanks to the use of high-grade materials, the diaphragm gas meter is resistant to corrosion.

The gas meter is suitable for various gas media. The integrated calibration system coordinates the movement of the valves in relation to the optimum gas flow. The excellent linearity of the error curve is guaranteed even at low flow rates. Due to the optimum sliding characteristics of the valves the Qmin value remains stable and the gas meter is resistant to contamination. The high measuring range enables precise metering for flow rates from 0,016 m³/h to 6 m³/h.

Performance characteristics

Approved in accordance with MID by NMi
Integrated system to adjust the error curve
Galvanized steel powder-coated housing for maximum corrosion resistance
Fire resistant (HTB) up to 0.1 bar according to EN1359
Starting flow [lt] 1 dm³/h
Working temperature range: -25 °C to +55 °C
Operating pressure: 0.5 bar
Long-term stability due to usage of high-quality diaphragms
Retrofittable with pulser
Optional: reverse flow preventer

Product options

Measuring Principle

Diaphragm Gas Meters

Housing Material

Die-cast aluminum

Communication Technologies

Reed Pulser

Max. Operating Pressure (bar)

0,5

Nominal Flow Qn
