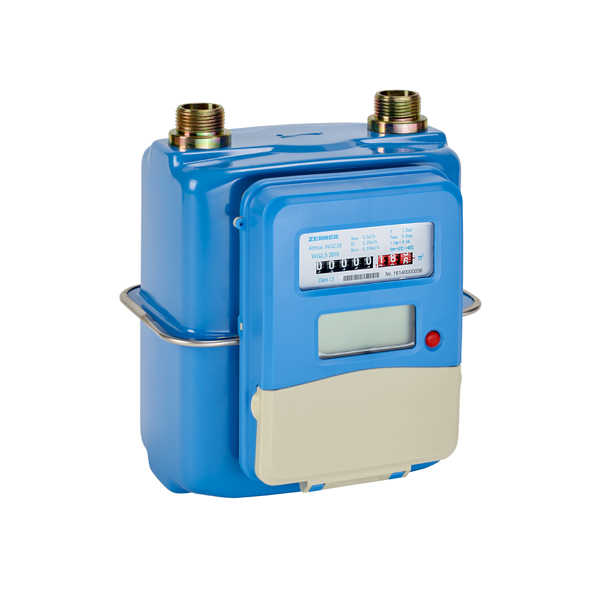

Atmos® IQ IC-Card prepaid diaphragm gas meter IG1.6S, IG2.5S, IG4S

General Information

The gas meters of the IGS series are credit gas meters and use an encrypted IC card as a data carrier.

IGS series are credit gas meters and use an encrypted IC card as a data carrier. Our IGS system is optimally adapted to the needs of gas supply companies. Using the IC-card, information such as gas flow, meter status or unusual operating conditions of the meter are read. This allows the operator to get relevant data from the customer without on-site reading.

Performance characteristics

Prepaid function
Overdrawing function
Anti store-up gas function
Hint and warning function
Built-in shut-off valve
Anti magnetic interference
Integrated system to adjust the error curve
Starting flow [lt] 1 dm³/h
Working temperature range: -25 °C to +55 °
Operating pressure: 0.5 bar
Long-term stability due to usage of high-quality diaphragms
Optional: stair gas price
Temperature and pressure compensation

Product options

Measuring Principle

Diaphragm Gas Meters

Housing Material

Sheet Steel

Additional Options

Max. Operating Pressure (bar)

1,5

Nominal Flow Qn
