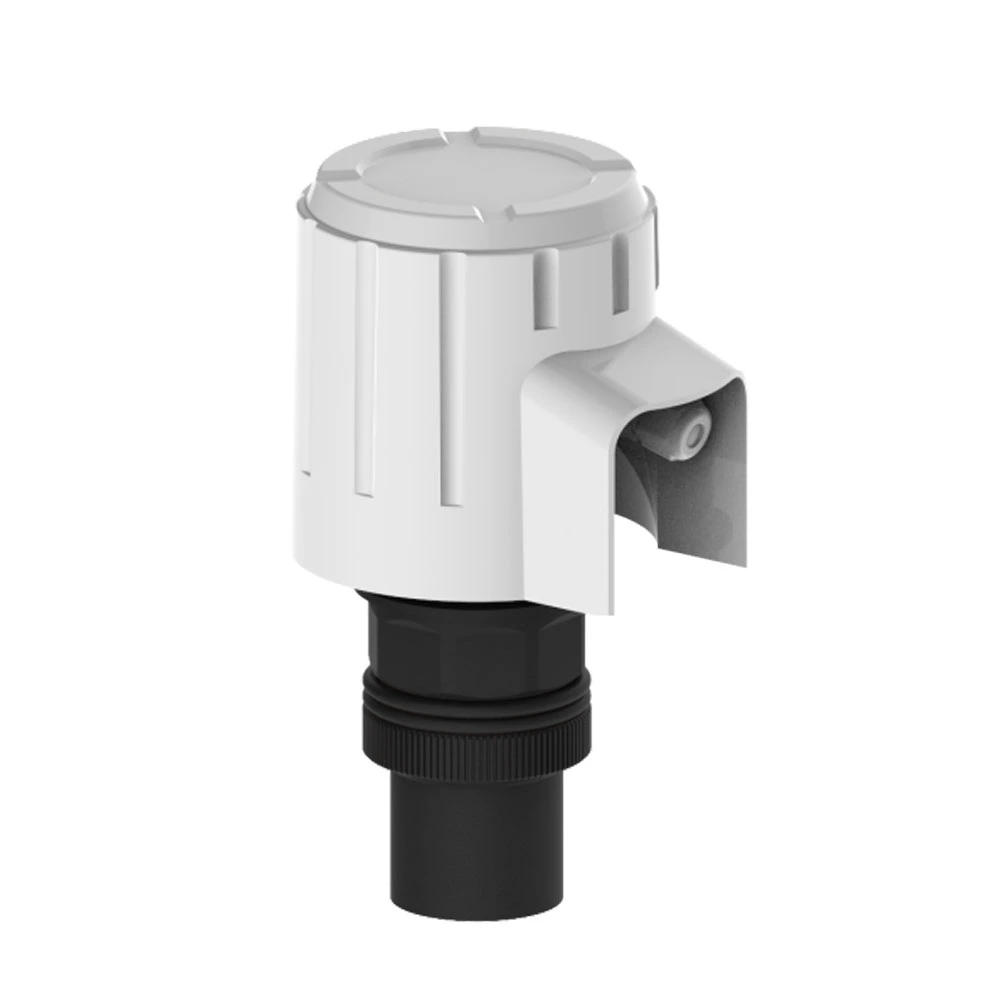

SUP-MP-C Ultrasonic level transmitter

General Information

SUP-MP-C Ultrasonic level transmitter is a non-contact, high reliability, cost-effective, easy to install and maintain liquid level/material level measure instrument. It can meet most liquid level/level measurement requirements without contacting the measured medium. It is a new generation of ultrasonic level gauge with completely independent property rights of our company.

SPECIFICATION

Product

Ultrasonic level transmitter

Model

SUP-MP-C

Measure range

5, 10m, 15m (optional)

Blind zone

≤0.4m (5m, 10m) ≤0.6m(15m)

Accuracy

±0.3%FS, ±0.5%FS

Display

Monochrome LCD

Output (optional)

Measuring variable

Level/Distance

Power supply

18-28 VDC

Temperature range

Ingress protection

Converter:IP65 Sensor:IP68

Huminity range

10%-85% RH (no condensation)

Installation

Thread (Standard)

Communication

RS485

Alarm

2 relays
