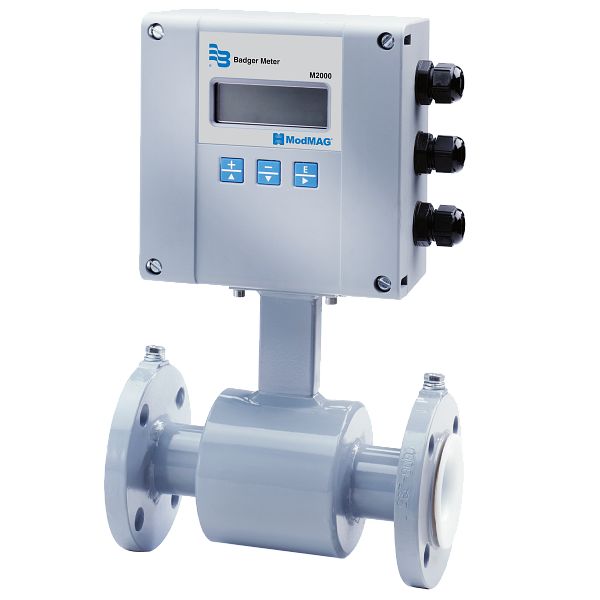

M2000 Electromagnetic Flow Meter

General Information

Combining a general-purpose detector with an amplifier, the ModMAG® M2000 Electromagnetic flow meter features an advanced, user-friendly design that is built for field verification testing with the use of a simple, handheld device.
REQUEST A QUOTE
CONTACT US

SPECIFICATION

Size
1/4...78 in.
Temperature Range
Up to 302° F
Flow Range
0.10... 39.4 ft/s
Accuracy
±0.2%

Features

  • Strict Accuracy Standards. Features sophisticated, processor-based signal conversion with accuracy of ±0.20% of rate ±1 mm/s with appropriate straight run. Delivers accuracy of ±1% with zero straight run required in applications with limited space.
  • Enhanced Data. Offers BACnet MS/TP, BACnet/IP, EtherNet/IP and Modbus TCP/IP communication protocols and seamlessly integrates into existing operations to provide enhanced data points. This is the first full-bore inline electromagnetic meter to complete the BACnet Testing Laboratories (BTL) Certification Program.
  • Application Versatility. Measures water, wastewater, water-based fluids and other liquids with minimum electrical conductivity, making it suitable for a wide range of applications.
