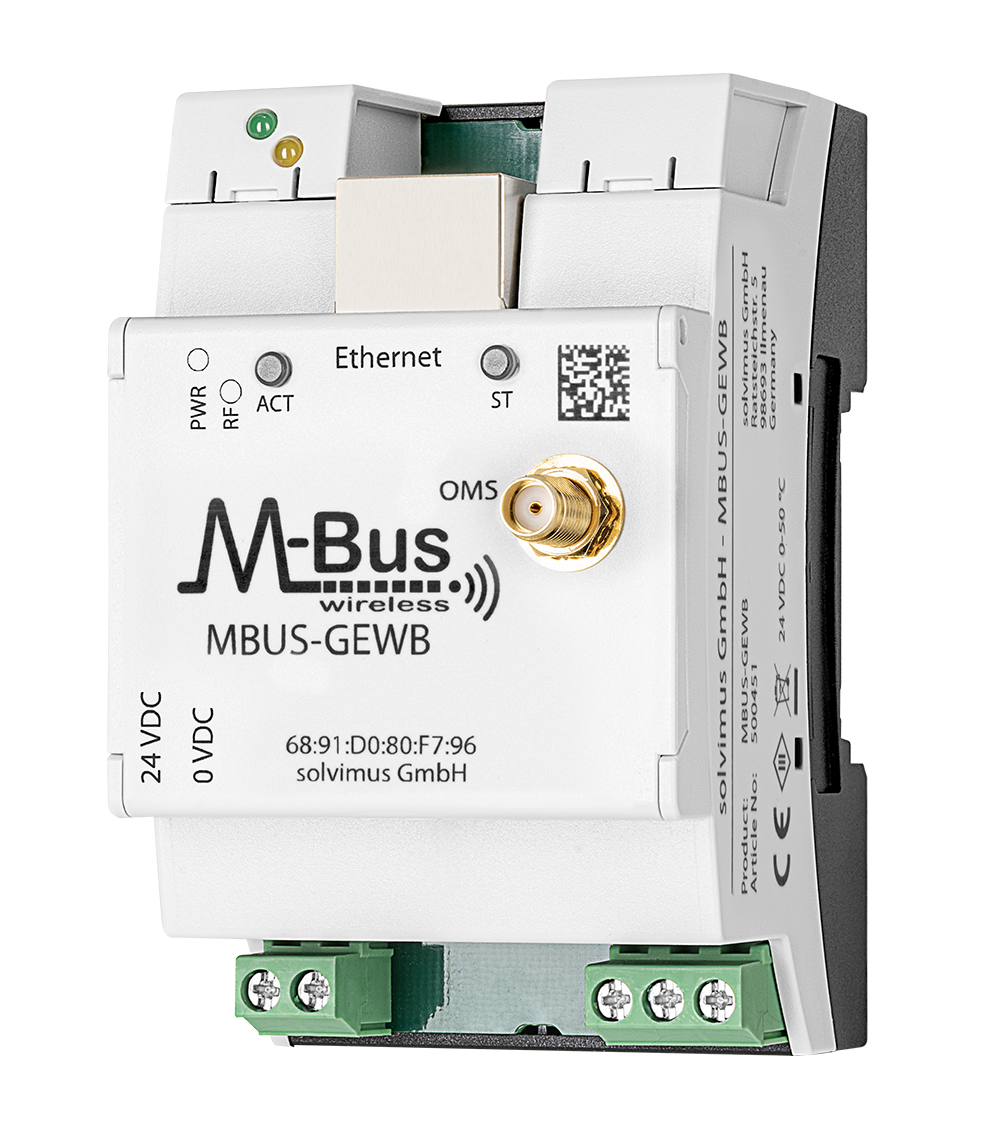

MBUS-GEWB

General Information

The compact gateway for converting wM-Bus data to BACnet/IP or BACnet/SC.

The MBUS-GEWB is chiefly used in a building management system as, guided by the drive for energy efficiency, more and more meters are installed in buildings and are connected to a building management system run by BACnet/IP or BACnet/SC.
REQUEST A QUOTE
CONTACT US

Features

  • Supports the operation of up to 1000 meters (max. 5000 BACnet objects)
  • Simple configuration via integrated web server using a standard web browser
  • Object in the form of Analogue Values for BACnet are created automatically during initial operation and filled with data from the meters. So, it is possible to integrate meters or sensors into any control system within a very short time
  • Change of Value
  • EDE files exportable
