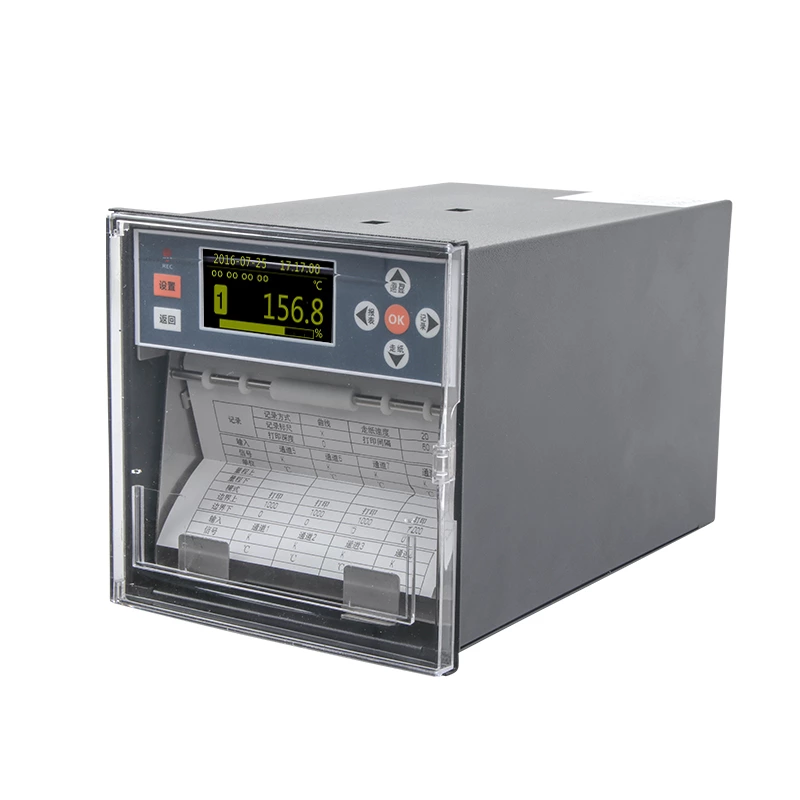

SUP-R1200 Chart recorder

General Information

SUP-R1200 chart recorder is a precision measuring instrument with perfect definition, high precision, and reliable, multi-functions, easy operated by using unique heat-printing record and advanced technology of microprocessor controlling. It can be recorded and printed uninterrupted.

SPECIFICATION

Product

Paper recorder

Model

SUP-R1200

Display

LCD display screen

Input

Voltage: (0-5)V/(1-5)V/(0-20)mV/(0-100)mV Electric current: (0-10)mA/(4-20)mA Thermocouple: B, E, K, S, T Thermal resistance: Pt100, Cu50, Cu100

Output

Up to 2 current output channels (4 to 20 mA)

Sampling period

600ms

Chart speed

10mm/h -- 1990mm/h

Communication

RS 232/RS485 (need Customization)

Power supply

220VAC; 24VDC

Precision

0.2%FS

Shorter mounting depth

144mm

DIN panel cutout

138*138mm
