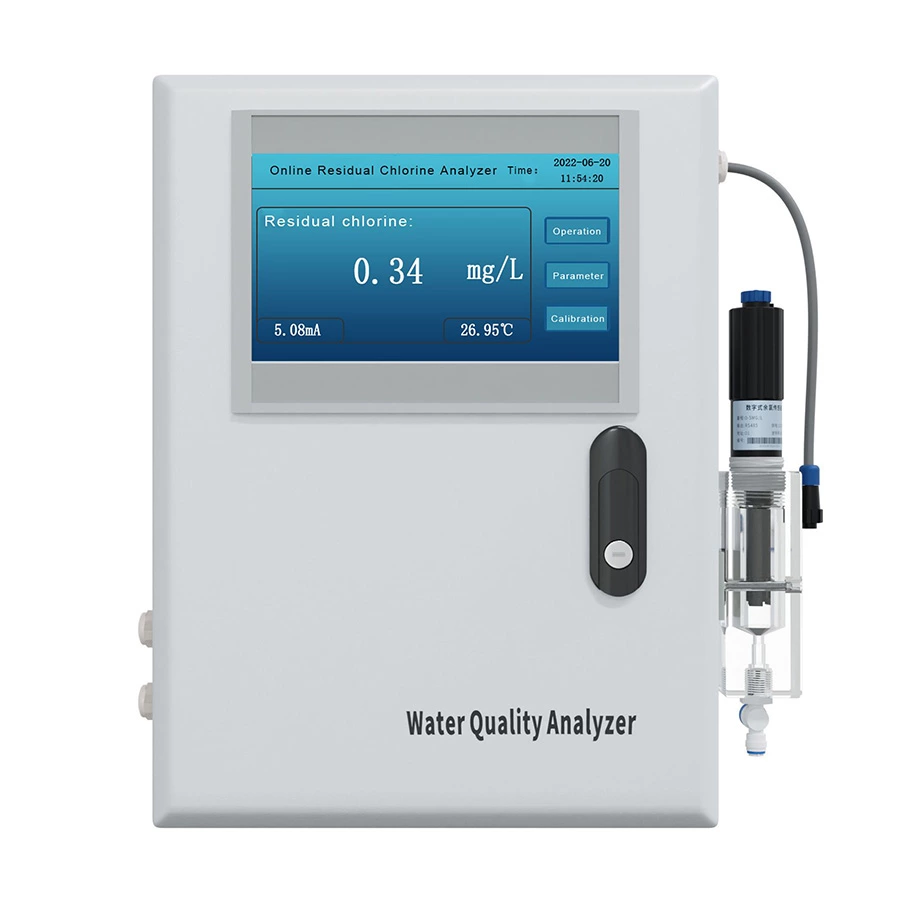

SUP-TRC 400 Residual chlorine meter

General Information

SUP-TRC 400 Residual chlorine meter has a built-in sensor, which has the characteristics of high measurement accuracy, fast response time and low maintenance cost.

Characteristics

Measure range:
Residual chlorine: (0~5) mg/L
Temperature: (0.1~40.0)℃
Load Resistance: ≤750Ω
Power supply:  220VAC
Communication :MODBUS RS485

REQUEST A QUOTE
CONTACT US

SPECIFICATION

Product
Residual chlorine meter
Model
SUP-TRC 400
Measure range
Residual chlorine: (0~5) mg/L Temperature: (0.1~40.0)℃
Display
7 inch touch screen
Protective box size
Dimensions: 400mm×300mm×200mm Window size: 155mm×87mm
Transmit output
(4~20)mA (optional)
Load resistance
≤750Ω
Communication
RS485, Modbus
Environmental humidity
≤95% no condensate
Power supply
220VAC
Ingress protection
IP43
